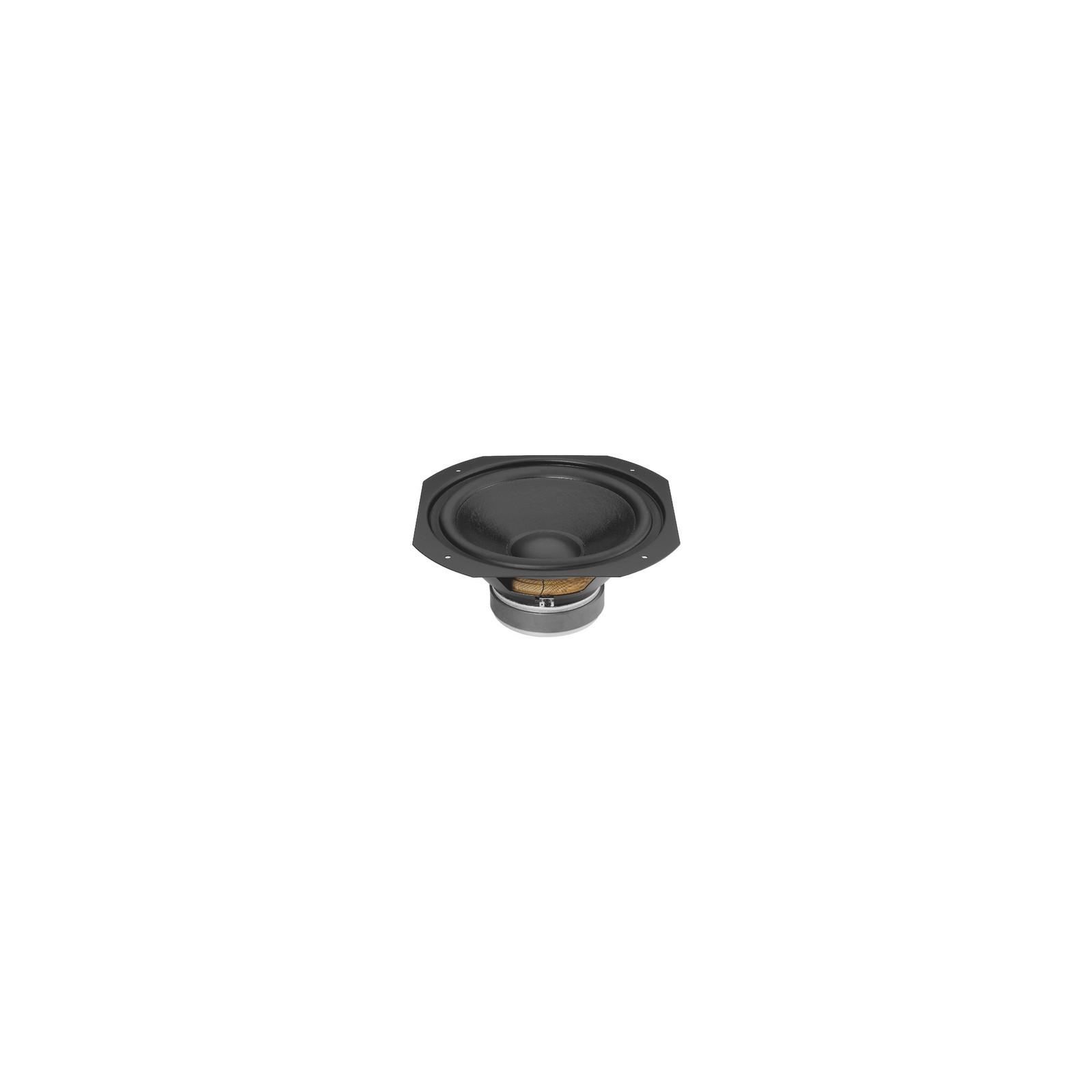

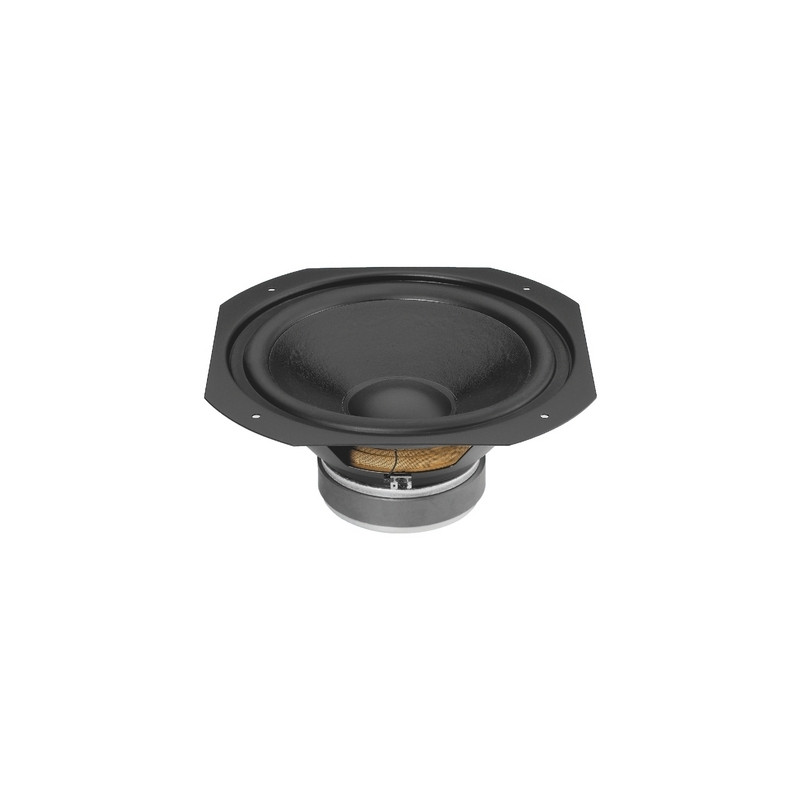

Monacor SPH-265 - Haut-parleur Woofer hifi 125w rms 8ohms diametre montage 246mm

Caracteristiques
Impedance (Z) 8
Resonant frequency (fs) 23Hz
Max. frequency range f3-2,500Hz
Rec. crossover freq. (fmax.) 2,000Hz
Music power 250WMAX
Power rating (P) 125WRMS
SPL (1W/1m) 91dB
Suspension compl. (Cms) 1.31mm/N
Moving mass (Mms) 36.5g
Mech. resistance (Rms) 2.7kg/s
Mech. Q factor (Qms) 1.95
Electr. Q factor (Qes) 0.32
Total Q factor (Qts) 0.27
Equivalent volume (Vas) 199 l
DC resistance (Re) 6.2
Voice coil induct. (Le) 0.9mH
Voice coil diameter 50mm
Voice coil former aluminium
Voice coil winding height 19mm
Air gap height 8mm
Linear excursion (XMAX) ±5.5mm
Eff. cone area (Sd) 325cm2
Volume displacement (Vd) 178.8cm3
Force factor (BxL) 10.1Tm
Reference efficiency (No) 0.7%
Magnet diameter 120mm
Magnet weight 30oz.
Mounting cutout Ø 246mm
Mounting depth 117mm
Dimensions 265x265mm
Weight 3.1kg
Rec. net cabinet volume
Closed 35 l
Bass-reflex 70 l
